ICY DOCK MB998IP-B全金属8盘2.5


查看大图

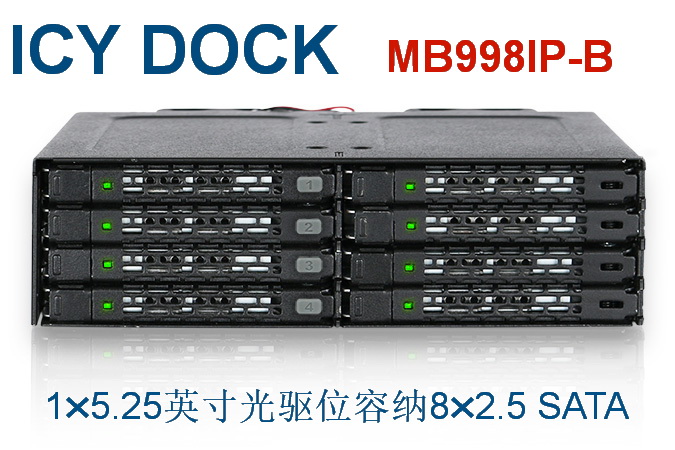

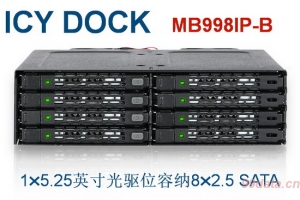

ICY DOCK MB998IP-B全金属8盘2.5" SATA硬盘盒占用1个5.25" 光驱位硬盘模组

MB998IP-B采用全金属材质与新型接口技术,为您的硬盘提供稳定、高速、可靠的运行环境。可容纳8x 2.5” SAS / SATA 厚度5mm-7mm 热插拔硬盘,仅占用一个标准5.25” 光驱位。

  • 产品重量:600.000 克(g)
  • 型  号:MB998IP-B
  • 品  牌:ICY DOCK
  • 计量单位:

ICY DOCK MB998IP-B全金属8盘2.5" SATA硬盘笼占用1个5.25" 光驱位

ToughArmor MB998IP-B采用全金属材质与新型接口技术,为您的硬盘提供稳定、高速、可靠的运行环境。可容纳8x 2.5” SAS / SATA 厚度5mm-7mm 热插拔硬盘,仅占用一个标准5.25” 光驱位,2个 Mini-SAS HD (SFF-8643)接口方便连接 高性能RAID卡。2个40mm 可调速风扇,可设置为高速、低速、停止三种模式。适用于各种对环境要求苛刻的高性能计算环境,例如:大数据、视频编辑、HPC/VDI、云计算、数据库等应用。

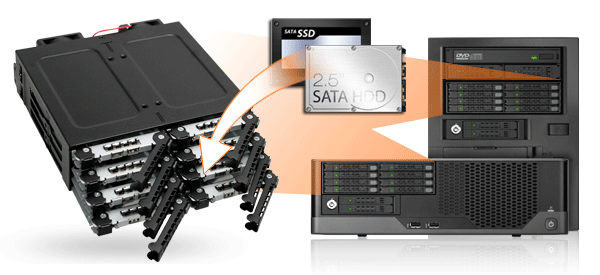

ToughArmor MB998IP-B支持8 x 5-7mm 2.5” SAS / SATA SSD 或者HDD, 仅占用一个5.25” 标准光驱位 (DVD-ROM bays).

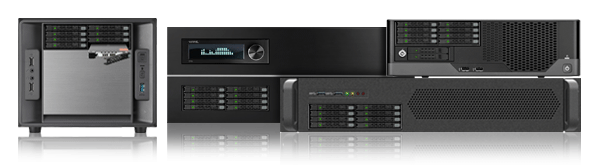

MB998IP-B可安装于台式机、工作站、服务器、HPC、工控机等主机,适用于高IOPS、高容量、低延迟的应用环境。

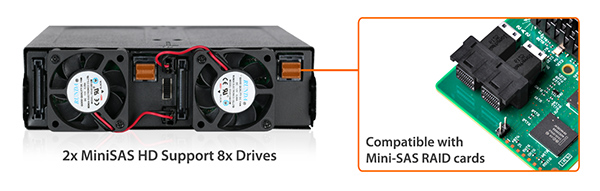

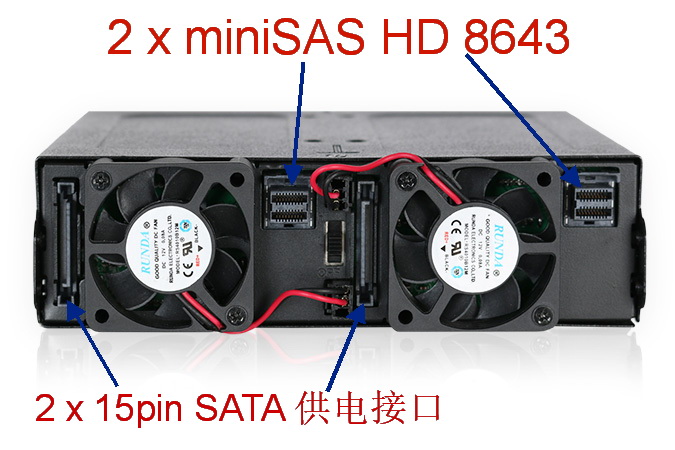

2x Mini-SAS HD (SFF-8643) 接口,方便与高性能RAID卡连接。

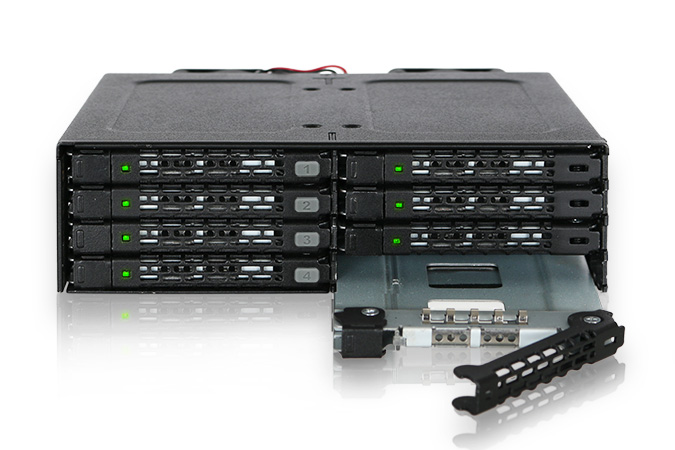

专业设计的托架,稳定可靠方便安装.

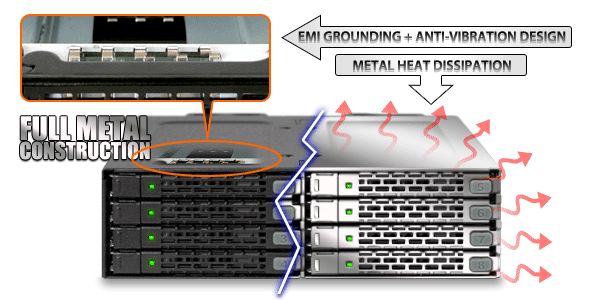

为稳定可靠而设计



全金属材质,风扇,防震设计,EMI技术。一切都为了您系统稳定可靠的运行。

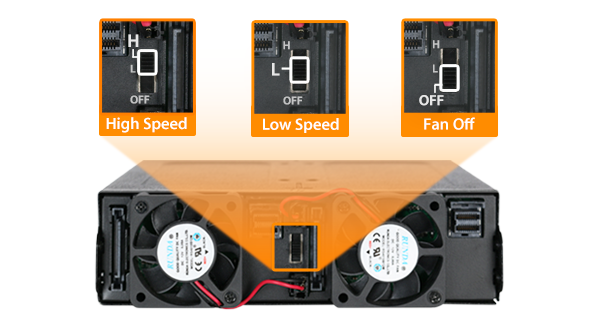

 可根据应用的不同,选择风扇的状态。.



Packed with Features



LED 指示灯显示硬盘与风扇的状态

可选硬盘标签.

带锁紧的连接线接头

亮点特性

* Rugged Heavy duty full metal construction with commercially designed for medical &military systems, media servers, workstation, HPCs and IPCs, approved & used by Tier 1 companies

* Perfect for rugged applications and complies to flammability requirements

* Fits 8 x 5mm to 7mm 2.5” SATA hard drives or SSD’s in a single external 5.25” bay for high performance RAID applications

* Dual 40mm user-controllable fans, with settings for high, low, and off

* Connected by 2x Mini-SAS HD data cables for all 8 bays, for plug-and-play compatibility with most motherboards and RAID cards

* Requires only 2 x 15pin SATA power connectors to power all 8 bays (drives)

* Drive label plugs to keep track of your RAID drives

* Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs

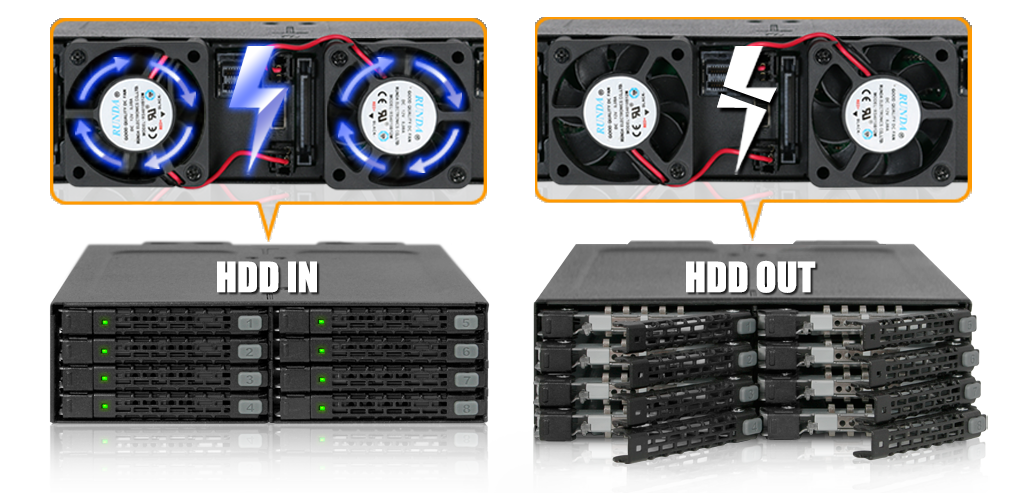

* Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay

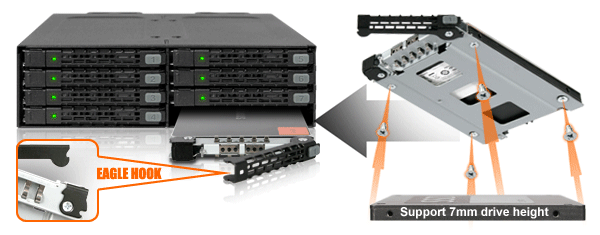

* Eagle-hook lock system keeps drives secured within the enclosure

* Removable tray system for easy maintenance

* Supports SAS12Gbps (single channel)&SATA 6Gbps and hot-swap

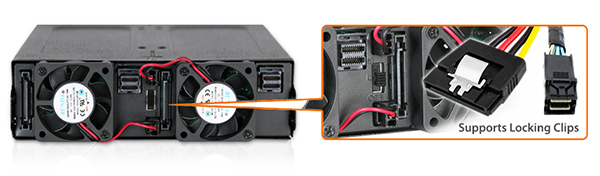

* Supports MiniSAS HD and SATA power cables with locking latch design

* Industry leading 3 year warranty with exceptional customer support



规格参数

产品编号 : MB998IP-B

颜色 : 黑色

主机接口 : 2 x miniSAS HD 8643

适用的硬盘: 8 x 2.5" SAS / SATA SSD or HDD (5 to 7mm drive height)

可安装到哪些设备 : 占用一个标准5.25" 光驱位

传输带宽 : SATA up to 6 Gb/sec. (depending on hard drive speed)

SAS 3.0 up to 12Gbps (single channel)

输入电源: 2 x 15pin SATA power port

Insert& Extract connection Via : Direct SATA hard drive connection

材质 : 金属

散热设计 : 2个 40mm 可调速风扇

金属结构散热

电源指示灯 : Solid green LED

硬盘读写灯 : Flashing green LED

外形尺寸 (L x W x H) : 172 x 146 x 41.3mm

重量: 1.93 lbs
