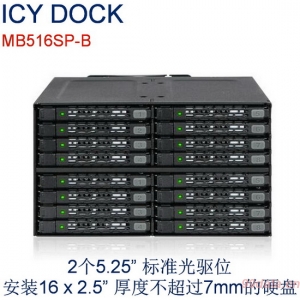

ICY DOCK MB516SP-B全金属16盘位2.5” SATA硬盘仓2x5.25”光驱位硬盘模组


查看大图

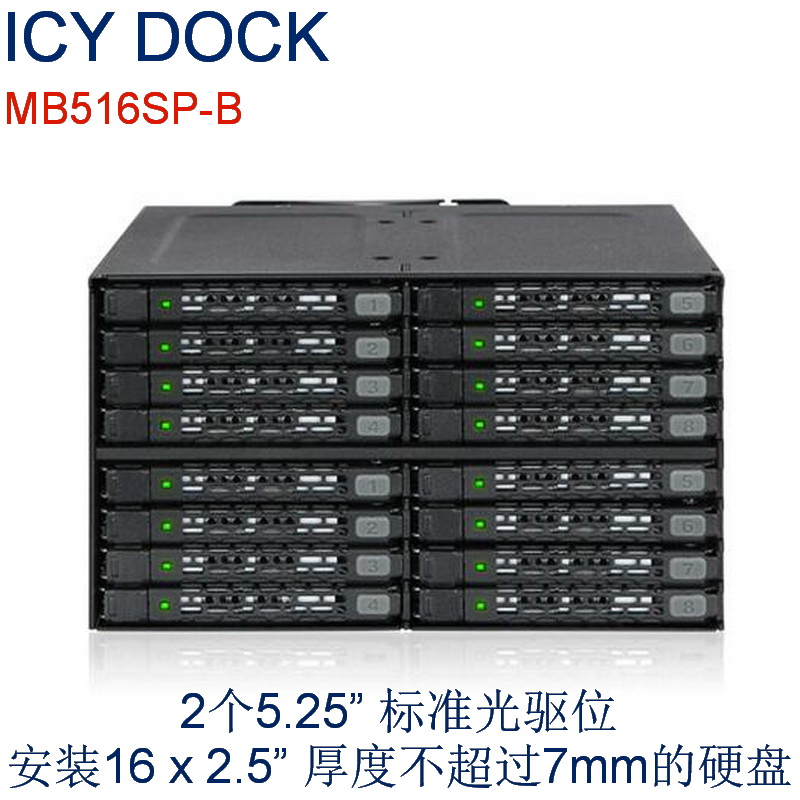

ICY DOCK MB516SP-B全金属16盘位2.5” SATA硬盘仓2x5.25”光驱位硬盘模组

MB516SP-B支持16 x 2.5” SATA / SAS 厚度不超过7mm的硬盘, 可安装于2个5.25” 标准光驱位。搭配高性能RAID卡,就可以打造16盘位全闪存高性能磁盘阵列,适用于各种高性能存储应用。

  • 商品重量:900.000 克(g)
  • 货  号:MB516SP-B
  • 品  牌:ICY DOCK
  • 计量单位:
  • 所得积分:329
  • 销售价: ¥3290.00
购买数量:
  (库存9)
app hook

ICY DOCK MB516SP-B全金属16盘位2.5” SATA硬盘仓2x5.25”光驱位

ToughArmor MB516SP-B支持16 x 2.5” SATA / SAS 厚度不超过7mm的硬盘, 可安装于2个5.25” 标准光驱位。搭配高性能RAID卡,就可以打造16盘位全闪存高性能磁盘阵列,适用于各种高性能存储应用。内置 80mm可调速静音风扇,可设定为高速、低速、关闭三种模式。全金属材质,适用于企业、军事、医疗、高性能计算与工业设计等环境。

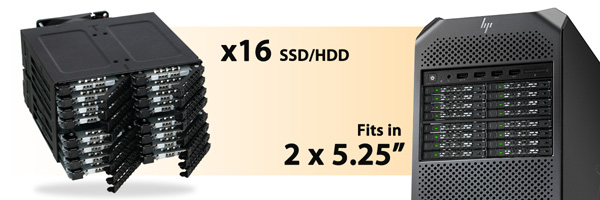

MB516SP-B 支持6 x 5mm -7mm 2.5” SATA / SAS SSD 或者HDD, 仅占用2个5.25” 标准光驱位 (DVD-ROM bays).

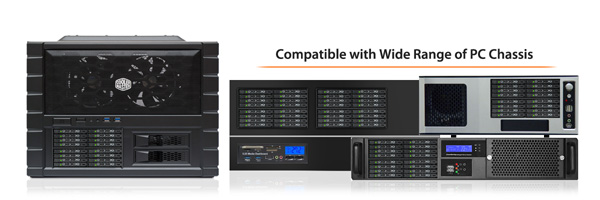

MB516SP-B外形紧凑,适用于工作站,服务器, HTPC等需要高 IOPS, 高存储容量、低延迟的应用。

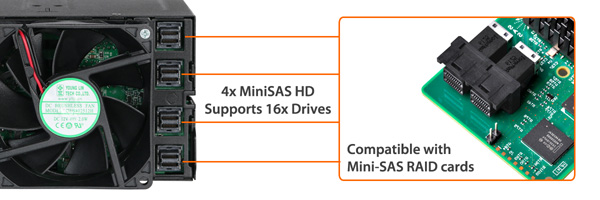

4x Mini-SAS HD (SFF-8643) 接口,方便与高性能RAID卡连接。

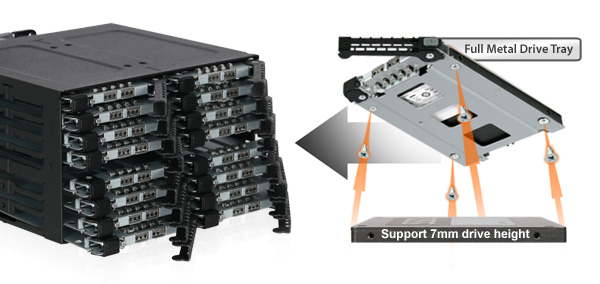

专业设计的托架,方便安装,牢固可靠。.

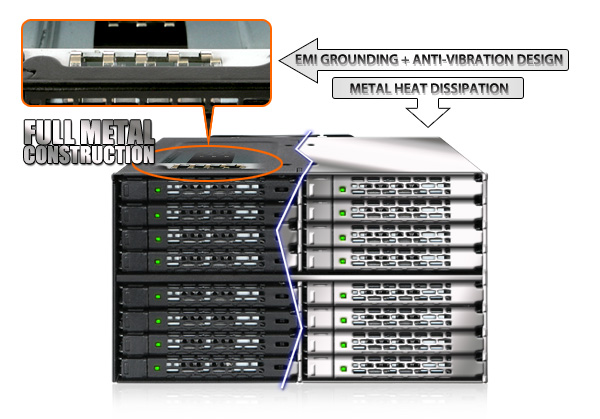

为可靠与稳固而设计



全金属材质,防震托架, 80mm 可调速风扇。

可根据应用的不同,选择风扇不同的转速。



适合的应用

 - Rugged systems for industrial, medical and military use, and any other use where high-strength and flammability resistance is required.

- High-density storage applications in data centers, home and enterprise servers

- Electronic media storage in home theater PCs (HTPC) and media center PCs

- High-performance RAID applications such as RAID 0 (fast), RAID 1 (safe), and BIG (span) when connected to a RAID card

- Enterprise grade security live stream data recording server

- Virtual Reality(VR) image processing workstation/supercomputer

- 4K/8K raw footage/video editing / processing workstation

- 3D modeling and medical imaging workstation

 主要特性

* Rugged heavy duty full-metal construction of all internal and external components, commercially designed for Medical & Military systems, media servers, and IPCs, and approved and used by Tier 1 companies.

* Perfect for rugged applications that must meet flammability requirements.

* Fits 16 x 5mm to 7mm 2.5” SATA/SAS hard drives or SSDs in 2x external 5.25” bays for high performance RAID applications.

* Large 80mm cooling fan circulates a massive amount of air, while running quietly.

* Fan is user-adjustable, with settings for high, low, and off.

* Powered by 4x 15-pin SATA power cables for all 16 bays.

* Connected by 4x Mini-SAS data cables for all 16 bays, for plug-and-play compatibility with most motherboards and RAID cards.

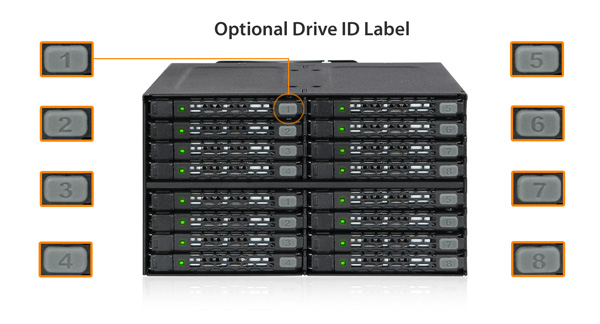

* Drive label plugs to keep track of your RAID drives.

* Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs.

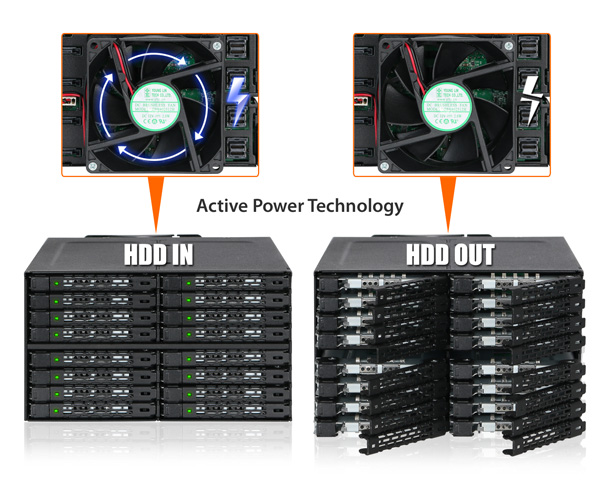

* Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay

* Eagle-hook lock system keeps drives secured within the enclosure

* Removable tray system for easy maintenance

* Supports SAS & SATA 6Gbps and hot swap

* Supports MiniSAS HD and SATA power cables with locking latch design

* Industry leading 3 year warranty with exceptional customer support



规格参数

产品名称 : 全金属16 盘 2.5" SAS/SATA SSD & HDD 硬盘仓

产品编号 : MB516SP-B

颜色 :

支持的硬盘 : 16 x 2.5" SSD / HDD,厚度不超过7mm

硬盘类型 : SATA / SAS (Support Single Channel SAS)

硬盘数量 : 16

硬盘厚度 : 不超过7mm

安装位置 : 2 x 5.25" 标准光驱位

主机接口: 4 x miniSAS HD (SFF-8643)

输入电源 : 15 pin SATA power connector

传输带宽 : Up to 6Gbps (Depending on hard drive speed)

硬盘容量: 不限

散热风扇 : 1 x 80 mm Fan

RAID Function : N/A

材质: 全金属

支持热插拔 :

Drive Security : N/A

外形尺寸 (L x W x H) : 146 x 157.5 x 84mm

产品重量 : (3.2 lbs)1440g

包装重量 : 1770g

RAID Status LED Indicator : N/A

Drive Activity LED Indication : Drive power: solid green; HDD access: flashing green

包装内容: 1 - Device, 1 - user manual, 2 - ID Plug, 76 - screw

SATA Connector Insertion Rate : 10,000

湿度: 5%~65% RH

运行温度 : 0°C to 60°C (32°F to 140°F)

储藏温度 : -35°C to 70°C (-31°F to 158°F)

认证 : CE, RoHS, REACH

保修 : 3年
