• Protect Your Equipment: The 4-port hub features 15kV ESD surge protection to keep your connected peripherals safe from harm.
• Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
• Small-Scale Quality: Housed in a compact steel chassis, the 4-port hub is perfect for discreet installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
• Upstream: 1 USB port, Type B connector
• Downstream: 4 USB ports, Type A connectors
• Power Connector: DC Barrel 2.5mm ID × 5.5mm OD, Center Pin Positive
• Mounting Options: Wall & Surface



Features

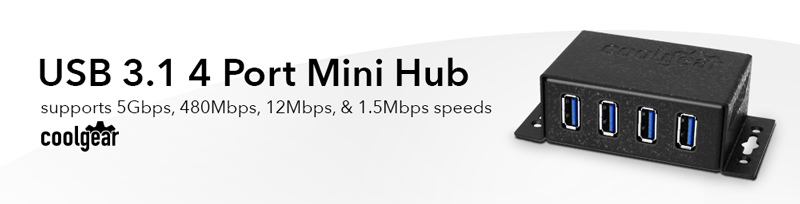

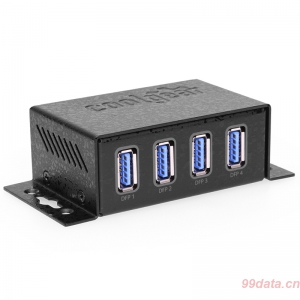

Compact, Mountable USB 3.2 Gen 1 4 Port Hub
USB 3.2 Gen 1powered hub with industrial-grade chassis and surface mounting flanges. The CG-U3MINI4P-BPH is a 5V DC input, generation 1 USB 3.2 hub with ESD and Surge protection. This USB 3.2 Gen 1 Hub will support fast charging for Apple and Samsung devices. Each port is protected individually to help keep your peripherals safe. The USB USB 3.2 Gen 1 Hub uses a GL 3510 chip, each port is on an individual circuit to maintain high current and protection. The GL3510 Hub controller chip features native fast-charging and complies with USB-IF battery charging specification rev1.2.

Applications

• Connect up to 4 USB devices and peripherals to your computer or laptop.
• Surface Mount or mount to a DIN rail in harsh industrial environments such as factories or warehouses.
• Add 4 fast-charging, data-communicating USB ports for ease-of-access for locations otherwise hard to access.

Specifications

• Compliant with USB 3.1 Gen 1 Specifications
• Upstream port supports Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
• Downstream ports support SS, HS, FS, and Low-Speed (LS) traffic
• 1 control pipe and 1 interrupt pipe
• Backward compatible to USB specification Revision 2.0/1.1
• Compliant with USB Battery Charging Revision v1.2, supporting CDP, DCP, and ACA-Dock
• Downstream ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
• Downstream devices can be charged while upstream VBUS is not present, which can be applied on wall charger applications
• Upstream port is capable of charging and data communicating simultaneously for portable devices supporting ACA-Dock or proprietary charging protocols
• Compatible with Windows XP, 7, 8,10, and Mac OS X

Package Includes

• USB USB 3.2 Gen 1 4-Port Hub
• 3ft. USB A to B Cable for Hub

*POWER SUPPLY & SURFACE MOUNTING SCREWS NOT INCLUDED

This product has a version with a power supply: CG-U3MINI4PH



Product Specifications

POWER	Input Voltage +5V DC Power Source AC Adapter Not Included,  DC Barrel Jack 2.5mm ID × 5.5mm OD Idle Consumption 57mA @ 5V / 35.6mA Bus Power External Power Required No Charging Protocols BC 1.2, Charging Downstream Port (CDP),  Dedicated Charging Port (DCP),  Samsung, Standard Downstream Port (SDP)
COMPLIANCE	Country of Origin China Certifications RoHS
PHYSICAL CHARACTERISTICS	Color Black Item Dimensions (L × W × H) 2.87 (3.81 with flanges) × 1.86 × 1.13 in. Item Weight 0.32 lbs. Mounting Style Surface / Wall Mount Ports 4 USB Ports Material of Construction Galvanized Steel
WHAT'S IN THE BOX	Package Contents Hub, USB-A to USB-B Cable
SOFTWARE	OS Support Win 7, Win 8, Win 10,  Win 11, Linux, Mac OSX
ENVIRONMENTAL	Operating Temperature 0°C to 55°C (32°F to 131°F) Storage Temperature -20 to 75°C (-4 to 167°F) Humidity 5% ~ 95% (non-condensing)
PRODUCT INFORMATION	Warranty 1 year from date of purchase
HARDWARE	Chipset GL 3510 Downstream USB Ports 4 Type-A Female USB Upstream USB Ports 1 Type-B Female USB
PERFORMANCE & SAFETY	ESD Protection 15KV Surge Protection for Each Port Isolated/Surge Protected Yes Max Data Transfer Rate 5Gbps Over Current Protection Yes Over Voltage Protection Yes per buck Surge Protection 350W
OTHER DATA	UPC 045079163300 USB Interface USB 3.2 Gen 1 Series WKS-UH (Workstation Series Hubs) Weight 0.75 lbs Dimensions 5.25 × 4.50 × 1.500 in
