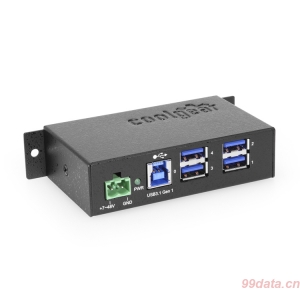

Coolgear USBG-4U3MLR2 4 Port USB 3.2 Gen 1 Powered Hub w/ ESD Surge Protection

Industrial Grade | +7~48V DC Input | Surface Mountable | DIN Rail | 5 Gbps | LED Indicators

Protect Your Equipment: The 4-port USB 3.2 Gen 1 features 15kV ESD surge protection per port to keep your connected peripherals safe from harm.
Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 4-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
Upstream: 1 USB port, Type B connector
Downstream: 4 USB ports, Type A connectors
Power Connector: 2-Pin Terminal Block

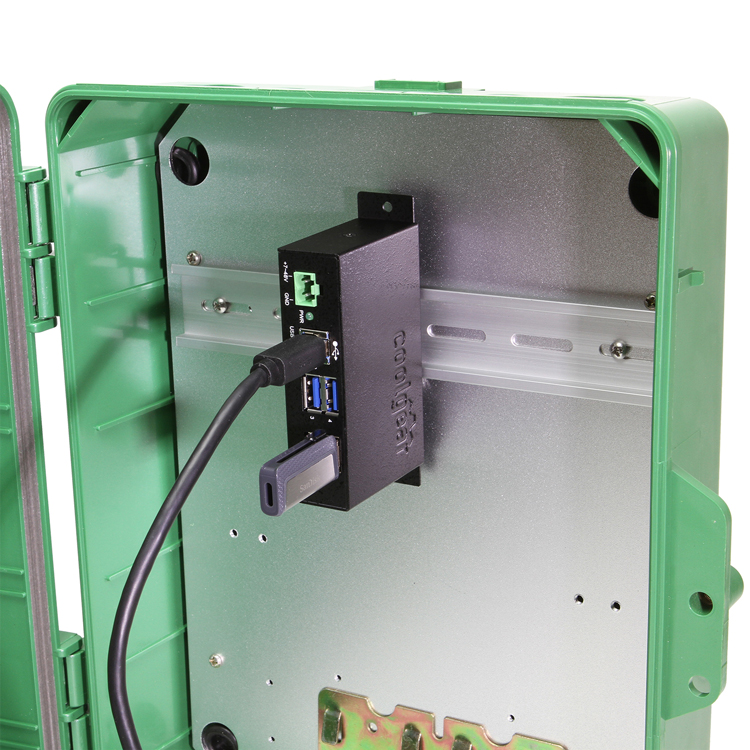

Mounting Options: Wall, Surface, and DIN Rail
Supply Current: 900mA USB Bus Power for Each Down-stream Port

Supports systems with USB 3.2 Gen 1, 2.0, 1.1 ports
LED indicator for power
Provides 4 downstream ports supporting 5Gbps data speeds
Compliant with USB 3.2 Gen 1 specifications
Provides 1 upstream port to the host computer
Backward compatible with data speeds of up to 5Gbps Super-Speed, 480Mbps High-Speed, and 12Mbps Full-Speed, and 1.5Mbps Low-Speed
BC 1.2 compliant for normal charging
Supports 15KV ESD surge protection for each port
Dimensions: 3.74in(L) x 2.26in(W) x 1.03in(H) (9.49 x 5.73 x 2.63 cm) (length with ears 4.50in)
Hub Weight: .431 lbs.
Multi transaction translators (TT) per hub
Supports +7 – 48V DC wide range self-power input (power adapter sold separately)
Supports a 2-pin Terminal Block Connector for External power input from AC adapter

Power

Input Voltage	+7~48V DC
Power Source	2-Pin Terminal Block, AC Adapter Not Included
Idle Consumption	7mA @ 12V Terminal Power, 9.4mA Bus Powered
External Power Required	No
Charging Protocols	BC 1.2, Charging Downstream Port (CDP)
Per USB Port Current	900mA maximum

Compliance

Country of Origin	Taiwan
Certifications	REACH, RoHS

Physical Characteristics

Color	Black
Item Dimensions (L × W × H)	4.50 × 2.26 × 1.03 in.
Item Weight	0.431 lbs.
Mounting Style	Surface / Wall Mount, Din-Rail Mount
Ports	4 USB Ports
Material of Construction	Galvanized Steel

What's in the Box

Package Contents

2-Pin Terminal Block, DIN Rail Clip(s), Hub, Screw Pack, USB-A to USB-B Cable

Software

OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Environmental

Product Information

Warranty

1 year from date of purchase

Hardware

Performance & Safety

ESD Protection	15KV Surge Protection for Each Port
Isolated/Surge Protected	Yes
Max Data Transfer Rate	5Gbps
Over Current Protection	Yes
Over Voltage Protection	Yes per buck

Other Data
