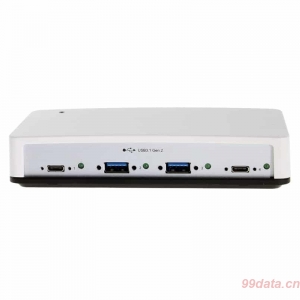

Coolgear CG-4P31CHUB 4口USB 3.1 Gen2 10Gbps Type C Hub


查看大图

Coolgear CG-4P31CHUB 4口USB 3.1 Gen2 10Gbps Type C Hub

New Coolgear USB 3.2 G2 Hub with 2 Type-C and 2 Type-A downstream ports providing up to 10Gbps Data transmission. It includes a rigid Wall and DIN Rail Mounting Kit to support both USB-A and USB-C connections securely. It is backward compatible with your

  • 型  号:CG-4P31CHUB
  • 品  牌:CoolGear
  • 计量单位:

  • USB 3.2 Gen2 Compliant up to 10Gbps Data Speed, built with VL820 Chipset inside.
  • Support USB Battery Charging: SDP, CDP and DCP modes.
  • Supports 10Gbps(Super-Speed Plus), 5Gbps (Super-Speed), 480Mbps(High-Speed), 12Mbps(Full-Speed), and 1.5Mbps(Low-Speed) data rates.
  • Includes a rigid Wall and DIN Rail mounting kit.

4 Port USB 3.1 Super-Speed Plus Hub with Type-C and A Ports

The CG-4P31CHUB USB 3.1 Type-C Hub is a light weight hub with a DIN Rail Mounting Kit. This hub supports USB 3.2 G2 Super-Speed Plus (10Gbps data transfer) with (2) USB Type-A female and (2) USB female Type-C downstream ports.

The CG-4P31CHUB USB 3.2 G2 Type-C Hub uses a 2-pin terminal block connection for input power of +7 – 24V DC for the downstream facing ports (power supply is included). It is backward compatible with 5Gbps (Super-Speed), 480Mbps(High-Speed), 12Mbps(Full-Speed), and 1.5Mbps(Low-Speed) data rates. The plastic mounting plate for the DIN Rail Clips snaps on to the bottom of the hub for secure mounting. Upstream information is carried with the USB-C connection on the back panel of the hub.

Note: This hub, although it supports battery charging spec1.2, does not have PD (power delivery) functionality.

4 Port USB 3.1 Gen2 Hub Features

  • Compliant with USB 3.1 Gen2 Specifications
  • Rigid plastic Wall and DIN Rail Mounting Case.
  • Provides 4 (2 USB-C and 2 USB-A) Downstream facing USB 3.1 Ports
  • Supports 10Gbps(Super-Speed Plus), 5Gbps (Super-Speed), 480Mbps(High-Speed), 12Mbps(Full-Speed), and 1.5Mbps(Low-Speed) data rates
  • Multi Transaction Translators (TT) per Hub
  • Support USB Battery Charging: SDP, CDP and DCP modes
  • Built with the VLI VL820-Q8 chip
  • Item Dimensions: 152.04mm(L) x 62.45mm(W) x 30mm(H) – 152.04mm(L) x 67.67mm(W) with 2-pin connector x 34.25(H) with mounting plate

Environmental Specifications

  • Operating Temp: o to 70°C (32 to 158°F)
  • Operating Humidity: 5 to 95% RH

Package Contents

  • USB 3.1 Gen2 4 Port Hub
  • 3ft. USB-C Male to Male Gen2 Cable
  • Wall and DIN Rail Mounting Plate
  • 12V 3 Amp Power Supply
  • 4 rubber foot pads
  • DIN Rail Mounting Kit
  • User Manual

Product Specifications

IDENTIFIER
UPC

045079159419

POWER
Input Voltage

+7~24V DC

Per USB Port Current

1.5 Amp

Over Current Protection

Y

Over Voltage Protection

Y

COMPLIANCE
Country of Origin

Taiwan

MECHANICAL
Color

White

Item Dimensions

152.04 x 62.45 x 30mm (LxWxH)

Item Weight

.34 lbs.

Mounting Style

Din-Rail (Optional Bracket), Surface Mount

Ports

4 USB Ports

USB
USB Type

USB 3.2 Gen 2

Upstream USB Ports

1 USB Type-C Female USB

Downstream USB Ports

2 Type-A Female USB, 2 Type-C Female USB

Screw Lock Compatible

Y

Supported Data Speed

10GB/sec, 5GB/sec, 480Mb/sec, 12Mb/sec, 1.5Mb/sec

SERIAL ATTRIBUTES
Screw Lock Compatible

Y

ENVIRONMENTAL
Operating Temperature

0C to 70C

OTHER DATA
Chip Model

VLI820-Q8

Weight

0.800 lbs

Dimensions

9.500 × 6.500 × 2.125 in
