FEATURES

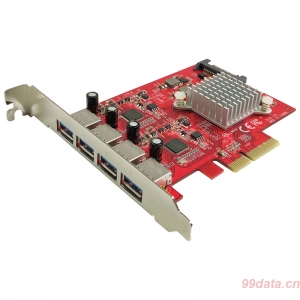

o Two ASM3142 chipsets and one PCIe Gen3 Packet Switch Controller to 4Ports 10Gbps USB3.1 Gen2
o PCIe x4Lane Host Adapter with PCIe 3.0 x2 controllers and signals
o Each USB-A port individual 10Gbps speed and 5V2A bus power, total 5V8A
o Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
o Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1
o Compliant with USB Attached SCSI Protocol Specification 1.0
o Supports SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
o Support USB3.1, USB3.0 and USB2.0 devices
o Compliant with PCI Express Specification 3.0
o When optional 15Pin SATA power installed, 4x Type A 5V bus power from PC power supply sufficient 12V instead of mainboard PCIe 12V Max 25W
o Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance
o Mac10.8 to 10.10, Mac10.12, Windows 10, Win8, 8.1, Server 2012, Linux kernel 2.6.31 and later OS in-box USB driver natively support UASP, no additional driver required
o Mac 10.11 in-box driver Not support USB3.1
o Fully RoHS compliant
