FEATURES

　

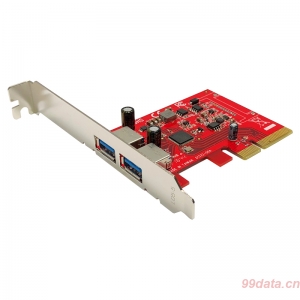

o        PCIe x4 Lane Host Adapter with USB3.1 PCIe Gen3 x2 fast chipset

o        Each USB 3.1 Type A port adapt 5V2A bus power, total 5V4A

o        USB 3.1 Type A 2x downstream receptacle ports

o        Compliant with Universal Serial Bus 3.1 Specification Revision 1.0

o        Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1

o        Compliant with USB Attached SCSI Protocol Specification 1.0

o        All USB ports can handle SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction

o        Support USB3.1, USB3.0, USB2.0 and USB1.1 devices

o        Compliant with PCI Express Specification 3.0

o        Low Profile PCIe Form Factor

o        Regular size PCIe bracket on board and Low Profile PCIe Bracket included

o        Require an empty PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance

o        Mac10.8 to 10.10, Mac10.12, Windows 10, Win8, 8.1, Server 2012, Linux kernel 2.6.31 and later OS in-box USB driver natively support UASP, no additional driver required

o        Provides Asmedia driver for Windows 7 and 64bit 2008 R2

o        Mac 10.11 in-box driver Not support USB3.1

o        Chipset : Asmedia ASM3142

o        Fully RoHS compliant
