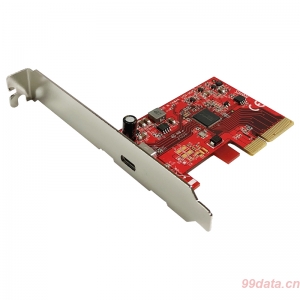

UB-159 20Gbps USB3.2 Gen 2x2 Type-C USB3.2转接卡


查看大图

UB-159 20Gbps USB3.2 Gen 2x2 Type-C USB3.2转接卡

Fast USB3.2 Gen 2x2 20Gbps Type-C 1Port in Low Profile PCIe Gen3 x4 5V3A

  • 型  号:UB-159
  • 品  牌:Lycom
  • 计量单位:

FEATURES



o        USB3.2 Gen 2x2 PCIe 3.0 x4 Lane Host Adapter

o        One USB 3.2 20Gbps Type C downstream receptacle port

o        Compliant with Universal Serial Bus 3.2 Specification Revision 1.0

o        Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1

o        Compliant with USB Attached SCSI Protocol Specification 1.0

o        Compliant with PCI Express Specification 3.0

o        Overcurrent Protection

o        Provides Type-C Port bus power 5V3A

o        Low Profile PCIe Form Factor

o        Regular size PCIe bracket on board and Low Profile PCIe Bracket included

o        Require an empty PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.2 Gen 2x2 full performance

o        Windows 10, Server 2016, 2019, Mac10.15.3 OS in-box USB driver natively support UASP, no additional driver required

o   Fully RoHS Compliant

o       Chipset : Asmedia ASM3242
