Coolgear  12口USBG-12U3ML USB 3.0 工业级Hub 金属封装，含电源适配器



USBG-12U3ML 12口 USB 3.0 Hub 兼容支持USB 2.0 与 USB1.1 规范，通过外接电源适配器供电。符合工业级稳定性要求， 可连接12个USB外接设备。
• 符合 USB 3.0 传输规范
• 12 USB 3.0 接口
• 可让您的电脑主机添加12个USB外接设备，工业级稳定性，金属封装。
• LED 接口指示灯

Product Description

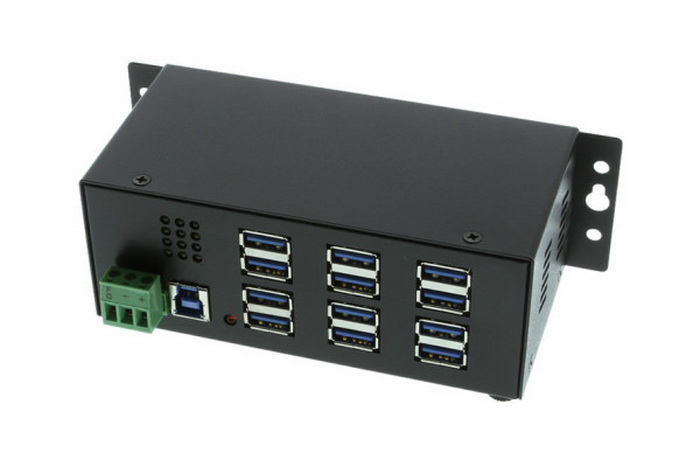

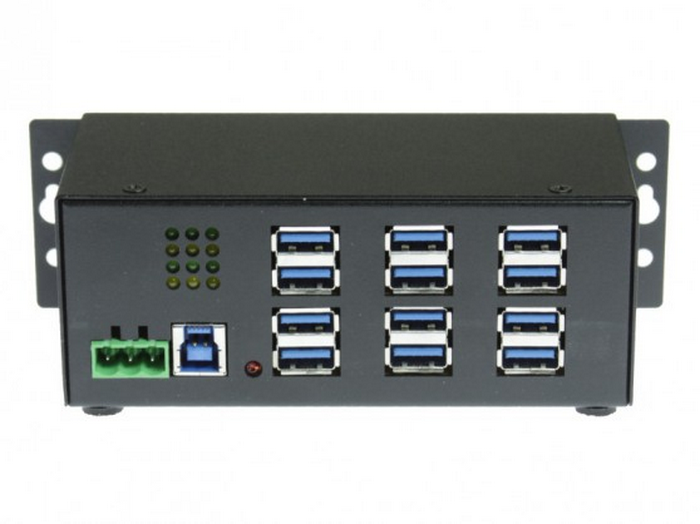

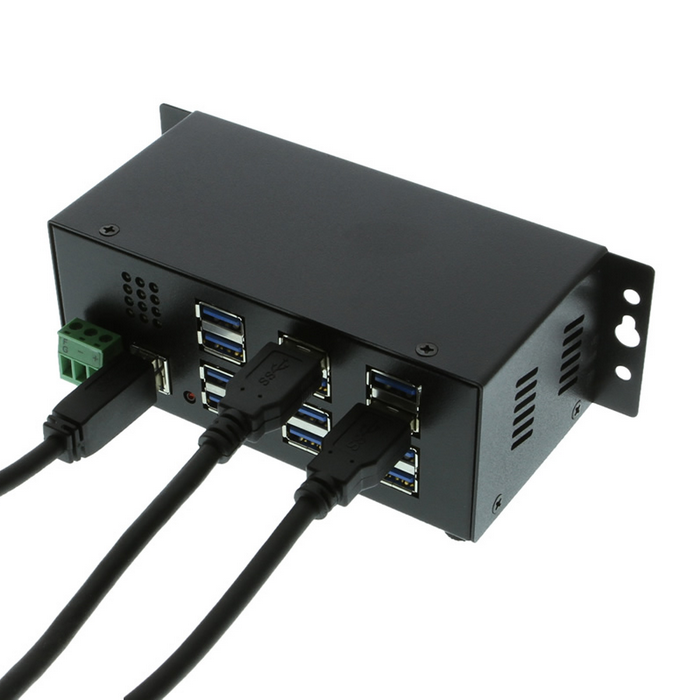

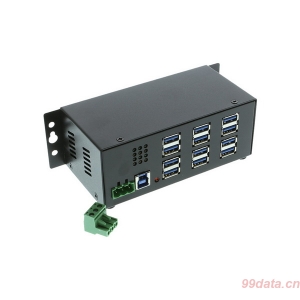

Designed to provide quick and easy access, the USBG-12U3ML provides twelve type “A” downstream ports for connecting USB peripherals, devices, or other USB hubs. A single type “B” upstream port connects to the host computer or another USB hub, enabling up to 127 devices to be connected by cascading multiple hubs. Configured directly by the operating system, the 12-Port USB 3.0 Powered Hub operates seamlessly with both Microsoft Windows and Apple Macintosh Operating Systems.
The USBG-12U3ML 12-Port USB 3.0 Powered Hub is targeted at Industrial Application users for both PC and Mac that are expanding the number of USB ports on their system. The all metal chassis provides a rugged and durable construction that can withstand operating conditions in both the Automotive and Marine industries. The 12-Port USB 3.0 Powered Hub can be wall-mounted or installed onto a DIN-Rail for convenient access to the port connections.

The USBG-12U3ML USB 3.0 hub can be powered with a three wire terminal block connector (9-48V)  with AC Adapter Required, the AC adapter is sold separately for peripherals requiring more power consumption (pictured below). The USBG-12U3ML is a Super-Speed USB 3.0 12-port hub that is backward compatible with USB 2.0 and 1.1. It provides an out of the box industry standard that allows connection of up to 12 USB peripherals or devices to your USB ready PC or Mac. External power supplies are sold separately for the USBG-12U3ML Hub.
As a standard USB hub, the USBG-12U3ML buffers USB data from any attached peripheral in compliance with USB specifications to provide an invisible extension of the USB bus. Supporting both low speed (1.5Mbps and 12Mbps), Hi-Speed (480Mbps), & Super-Speed (5,000 Mbps) devices, each port creates a bridge between the peripheral and host computer.

Additional Features:
• LEDs provide port status for each port and power status.
• Compliant with USB Specification Revision 3.0
• Backwards compatible with USB Specification Revisions 2.0 & 1.1
• Supports High-speed and or Full-speed Packet
• Protocol Sequencer for Endpoint 0/1
• Provides 12 Downstream Facing USB 3.0 Ports
• Supports 5,000Mbps, 480Mbps, 12Mbps and 1.5Mbps Speed
• Multi Transaction Translator per Hub and Supports 12 Concurrent Non-periodic Transactions
• Supports Self-powered Mode
• Supports Downstream Port Status with LED
• High-speed or Full-speed Packet Protocol Sequencer for Endpoint 0/1
• Product Dimensions: 5.132in(L) (6.132in w/flange) x 2.608in(W) x 2.104in(H)
Device Support:
• Supports Downstream Port Status with LED USB Devices Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, joystick, virtual reality helmet, modem, PBX and many more USB devices I/O Hardware
• Supports 12 external USB 3.0 Type-A connectors and 1 Type-B Upstream connector.
• Supports a 3-pin Terminal Block Connector for external power input from AC adapter
• Includes USB 3.0 Cable
• Power Supply for this Hub IS NOT included and must be purchased separately.
OS Support:
• Windows Windows 7, and Windows 8, 10
• Linux and Mac OS 10.X
Environmental:
• Operating Temp.: 0 to 55C (32 to 131 F)
• Storage Temp: -20C to 85C (-4 to 185 F)
• Operating Humidity: 5 to 95% RH

Additional Information
Weight 1.25 lbs
Dimensions 8.5 x 5.5 x 2.5 in
UPC 729440692100
Warranty 1 year from date of purchase.
Color Black
USB Ports 12
Input Voltage 7 – 24 VDC
Mounting Style Din-Rail (Optional Bracket), Surface Mount
Temperature Range 0C to 55C
USB Type USB 3.0
Chip Model GL3522
