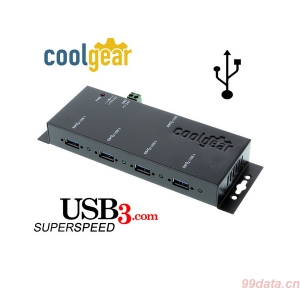

Coolgear USBG-3X4M USB3.0 4口工业级hub 金属封装标配电源适配器


查看大图

Coolgear USBG-3X4M USB3.0 4口工业级hub 金属封装标配电源适配器

USBG-3X4M 是一款4口金属封装工业级USB3.0 Hub ,遵从Universal Serial Bus 3.0 (USB 3.0) 产品规范,传输带宽可以达到5Gbps。产品设计采用双电源转换系统,可以为每个USB3.0接口提供900mA的供电。

  • 产品重量:200.000 克(g)
  • 型  号:USBG-3X4M
  • 品  牌:CoolGear
  • 计量单位:

Coolgear USBG-3X4M USB3.0 4口工业级hub 金属封装标配电源适配器



USB3.0 Hub Type-A Female USB 接口

USBG-3X4M 是一款4口金属封装工业级USB3.0 Hub ,遵从Universal Serial Bus 3.0 (USB 3.0) 产品规范,传输带宽可以达到5Gbps。产品设计采用双电源转换系统,可以为每个USB3.0接口提供900mA的供电。

  • 为您添加4 USB3.0高速数据接口,每个接口都有一个LED 状态指示灯。
  • 可以选择使用带锁紧螺钉的USB数据线,让连接更稳定。
  • 兼容支持USB 2.0 / 1.1 设备。
  • 双电源转换系统,可为没给USB3.0接口提供900mA供电。

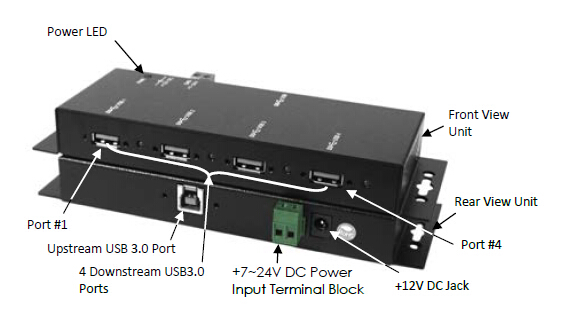

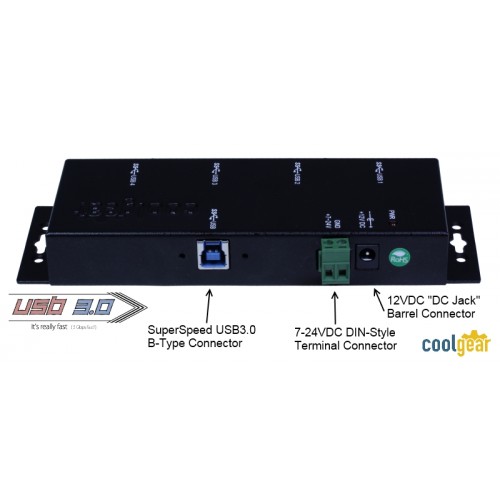

The USBG3-3X4M USB 3.0 4-Port Industrial hub with power supply provides 4 downstream facing ports with standard Type-A USB 3.0 connectors. It supports screw-lock features for both upstream (USB type B) and downstream (USB type A) connectors with the screw-lock USB cables. The screw-lock features are a preventative measure against accidental disconnection from the USB cables and hub.



With built-in single chip USB 3.0 controller, it is backward compatible either when any one of downstream port is connected to an USB 1.1 or USB 2.0 compliant device, or when the upstream port is connected to a USB 1.1 or USB 3.0 compliant host.

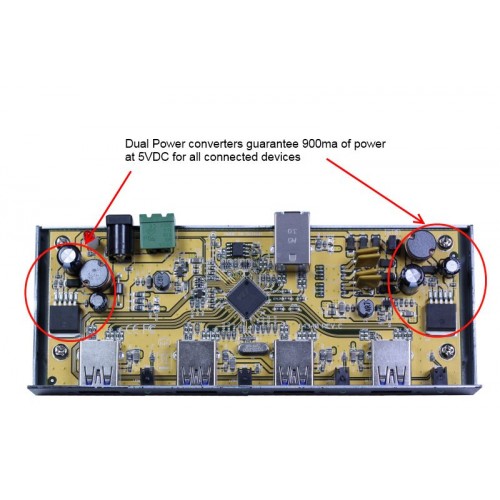

The USBG-3X4M USB 3.0 4-Port Industrial hub design incorporates dual power conversion systems. This allows the hub to provide the USB 3.0 specification maximum of 900ma current on each port. There is no other USB 3.0 hub currently on the market that can provide this much power to all connected devices, simultaneously.

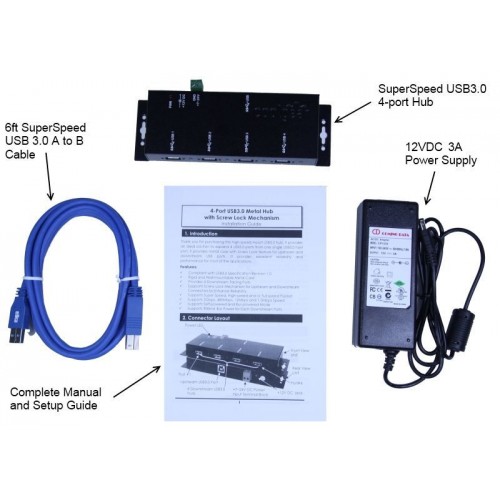

Package Contents (pictured above):

  • SuperSpeed USB 3.0 Hub
  • 1x USB 3.0 A to B cable (non-Screw Lock)
  • 1x 12VDC 3A Power Supply
  • 1x User Guide

Additional Features:

  • Compliant with USB 3.0 Specification Revision 1.0<
  • Rigid and Wall-mountable metal case
  • Provides 4 Downstream ports
  • Supports Screw Lock Mechanism for Upstream and Downstream connectors to enhance reliability
  • Supports SuperSpeed, High-Speed, and Full-Speed (USB 3.0, 2.0, and 1.1)
  • Supports Self-powered and Bus-powered modes.
  • Supports 900MA Buss Power for each Downstream Port (When using external power supply).
  • Product Dimensions: 6.013in(L) 7.013 (w/flange) x 2.350(W) x .955in(H)

OS Support:

  • Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, and Windows 8
  • Linux and Mac OS 10.X


Environmental Specification:

  • Operating Temp: 0 to 55°C (32 to 131°F)
  • Operating Humidity: 5 to 95% RH
