Coolgear USBG-4U3ML  USB 3.0 4口工业级Hub金属封装

 USBG-4U3ML是一款USB 3.0 4口工业级Hub ，遵从Universal Serial Bus 3.0 (USB 3.0) 产品规范（1.0版本）， 数据传输带宽可达5Gbps。可以使用带螺钉锁紧的专用数据线让连接更牢固，防止数据线意外从USBG-4U3ML断开。

• 遵从USB 3.0 产品规范，让您拥有更多USB3.0接口.
• 可以使用带螺钉锁紧的专用数据线让连接更牢固，防止数据线从USBG-4U3ML意外断开（标配不含专用数据线）.
• 可以通过USB3.0数据线供电，当您需要更强供电的时候，可以另外选购 AC 电源适配器供电（标配不含电源适配器.
• 金属封装，外形紧凑 (15.20 x 5.96 x 2.35 cm)

USBG-4U3ML Product Description

The USBG-4u3ML is a USB 3.0 4-Port Industrial Hub that complies with the Universal Serial Bus 3.0 (USB 3.0) Specifications Revision 1.0 and is capable of data transfers up to 5Gbps. It provides 4 downstream facing ports with standard Type-A USB 3.0 connectors. It also supports screw lock features for both upstream (USB type B) and downstream (USB type A) connectors with the Screw-lock USB cables, which prevents against accidental disconnection while transferring data.

With a built-in single chip USB 3.0 controller, this USB 3.0 4-Port hub is backward compatible when any one of the downstream ports is connected to an USB 1.1 or USB 2.0 compliant device, or when the upstream port is connected to a USB 1.1 or USB 3.0 compliant host.

The USBG-4u3ML also provides a unique feature to work in the bus-powered mode without an external AC power adapter. This hub is very convenient for light power consumption USB devices to work in this mode without an extra power supply. Simply plug the device in and continue working. If necessary, the external DC jack is used for self-powered mode for more power on the 4 downstream ports.



温馨提示：标配不含电源适配器

Since the USB port interface is the most popular external port for devices to connect to PCs, the USBG-4U3ML provides an ideal solution to expand your USB ports immediately and save your investment.

Additional Specifications:

• For Systems with USB 3.0, USB 2.0 or USB 1.1 Ports
•  Provides 4 USB 3.0 downstream ports which managing up to 5Gbps:
•  Compliant with USB 3.0 Specifications Revision 1.0
•  Provides 4 Downstream Facing Ports for Super-speed, High-speed, Full-speed and Low-speed traffic
•  1 Upstream Port for Super-speed, High-speed and Full-speed traffic
•  Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed

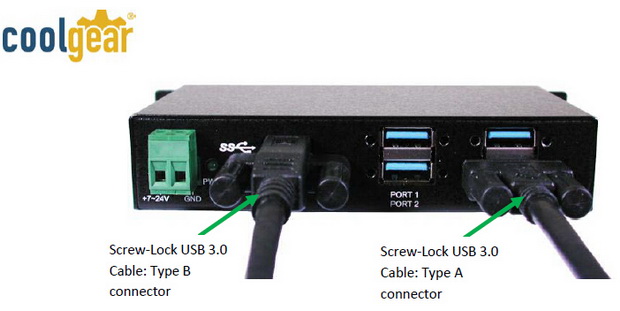

•  Supports USB Screw-lock Mechanism for Secure Cable Connection
•  Supports Self-powered and Bus-powered Mode
•  Supports up to 900mA USB Bus Power for Each Down-stream Port
•  Supports Downstream Port Status with LED

USB Devices:

•  Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, Pen-drives, SATA enclosures, joystick, virtual reality helmet, modem, PBX and many more.

OS Support:

• Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, and Windows 8
• Linux and Mac OS 10.X

I/O Hardware:

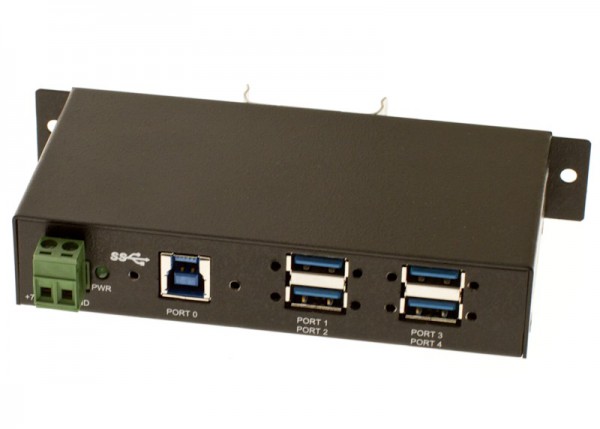

• Supports 4 external USB 3.0 Type-A connectors and 1 Type-B Upstream connector, supports screw lock features with screw lock type cables.
• Supports 1 DC Jack and 1 2-pin Terminal Blocks for external power input.

Environmental Specifications:

• Operating Temp: 0 to 55°C (32 to 131°F)
• Operating Humidity: 5 to 95% RH


Form Factor:

• (15.20 x 5.96 x 2.35 cm)
